Log Configuration

By / 11 October 2026 / 7 minutes of reading

Log configuration controls how logs look (format), where they go (console, files), and how much is shown (levels). Spring Boot offers two ways: simple application.properties settings, or a full Logback file named logback-spring.xml. The XML file gives complete control over appenders, rolling rules, filters, and different settings per profile (dev or prod). It is used when you need rolling files, a separate error log, or different logging behavior in development and production.

Features

  • Custom log format with date, level, thread, class, and message
  • Multiple destinations at once: console, application file, error-only file
  • Rolling by size and date, with compressed archives
  • Automatic cleanup using maxHistory and totalSizeCap
  • Different logging per profile using <springProfile>
  • Values from application.properties used inside the XML with <springProperty>
  • Level change at runtime through LoggingSystem, with no restart

Hands-on Experiment: Creating a spring boot application to understand how logging format, destination, and levels can be customized.

The following steps are involved in developing this hands-on experiment.

Step 1: Generate the Project

Step 2: Project Structure

Step 3: pom.xml

Step 4: application.properties

Step 5: Create Entity Class

Step 6: Create Repository Interface

Step 7: Create Service Class

Step 8: Create Controller Class

Step 9: Main Application Class

Step 10: Run the Main Application Class

Step 1: Configure the Project on Spring Initializr

Go to start.spring.io and set:

  • Project: Maven
  • Language: Java
  • Spring Boot version: 3.2.x
  • Group: com.example
  • Artifact: logconfig
  • Name: logconfig
  • Package name: com.example.logconfig
  • Packaging: Jar
  • Java: 17
  • Dependencies: Spring Web, Spring Data JPA, MySQL Driver.

Click Generate to download the ZIP, then extract and import it into your IDE as a Maven project.

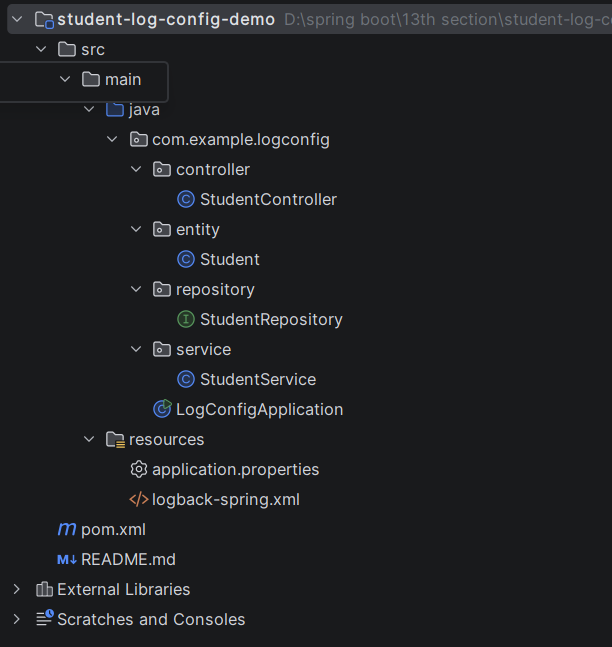

Step 2: Generated Project Structure

Step 3: Explore pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.2.5</version>
        <relativePath/>
    </parent>

    <groupId>com.example</groupId>
    <artifactId>student-log-config-demo</artifactId>
    <version>1.0.0</version>
    <name>student-log-config-demo</name>
    <description>Log Configuration - rolling logs with Logback (logback-spring.xml)</description>

    <properties>
        <java.version>17</java.version>
    </properties>

    <dependencies>
        <!-- spring-boot-starter-web already includes SLF4J + Logback -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <dependency>
            <groupId>com.mysql</groupId>
            <artifactId>mysql-connector-j</artifactId>
            <scope>runtime</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

Step 4: application.properties

spring.application.name=student-log-config-demo

# ---------- MySQL ----------
# Create the database first:  CREATE DATABASE student_log_config_db;
spring.datasource.url=jdbc:mysql://localhost:3306/student_log_config_db
spring.datasource.username=root
spring.datasource.password=password
spring.jpa.hibernate.ddl-auto=update
server.port=8082

# ---------- Which logging profile to use: dev or prod ----------
# logback-spring.xml reads this. Switch with:  mvn spring-boot:run -Dspring-boot.run.profiles=prod
spring.profiles.active=dev

# ---------- Custom value read by logback-spring.xml (<springProperty>) ----------
# Folder where all log files are written
app.log.dir=logsCode language: PHP (php)

Step 5: Create Entity Class

package com.example.logconfig.entity;

import jakarta.persistence.*;

@Entity
@Table(name = "students")
public class Student {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    @Column(nullable = false)
    private String name;

    @Column(nullable = false, unique = true)
    private String email;

    private String course;

    public Student() {
    }

    public Long getId() { return id; }
    public void setId(Long id) { this.id = id; }

    public String getName() { return name; }
    public void setName(String name) { this.name = name; }

    public String getEmail() { return email; }
    public void setEmail(String email) { this.email = email; }

    public String getCourse() { return course; }
    public void setCourse(String course) { this.course = course; }
}

Step 6: Create below Repository Interface

package com.example.logconfig.repository;

import com.example.logconfig.entity.Student;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

@Repository
public interface StudentRepository extends JpaRepository<Student, Long> {

    boolean existsByEmail(String email);
}

Step 7: Create below Service class

package com.example.logconfig.service;

import com.example.logconfig.entity.Student;
import com.example.logconfig.repository.StudentRepository;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.logging.LogLevel;
import org.springframework.boot.logging.LoggingSystem;
import org.springframework.stereotype.Service;

import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;
import java.util.ArrayList;
import java.util.List;
import java.util.stream.Stream;

@Service
public class StudentService {

    private static final Logger log = LoggerFactory.getLogger(StudentService.class);

    private final StudentRepository studentRepository;
    private final LoggingSystem loggingSystem;   // lets us change levels while the app is running

    @Value("${app.log.dir:logs}")
    private String logDir;

    public StudentService(StudentRepository studentRepository, LoggingSystem loggingSystem) {
        this.studentRepository = studentRepository;
        this.loggingSystem = loggingSystem;
    }

    // ---------------- Student operations ----------------

    public Student create(Student student) {
        log.info("Creating student with email={}", student.getEmail());
        if (studentRepository.existsByEmail(student.getEmail())) {
            log.warn("Create rejected - email already exists: {}", student.getEmail());
            throw new IllegalArgumentException("Email already registered: " + student.getEmail());
        }
        try {
            Student saved = studentRepository.save(student);
            log.info("Student created successfully with id={}", saved.getId());
            log.debug("Saved student details: name={}, course={}", saved.getName(), saved.getCourse());
            return saved;
        } catch (Exception ex) {
            log.error("Failed to create student with email={}", student.getEmail(), ex);
            throw ex;
        }
    }

    public List<Student> getAll() {
        log.info("Fetching all students");
        List<Student> students = studentRepository.findAll();
        log.debug("Total students found: {}", students.size());
        return students;
    }

    public Student getById(Long id) {
        log.info("Fetching student with id={}", id);
        return studentRepository.findById(id).orElseThrow(() -> {
            log.warn("Student not found with id={}", id);
            return new IllegalArgumentException("Student not found: " + id);
        });
    }

    // ---------------- Log configuration helpers (for the experiment) ----------------

    // Writes many lines quickly so the 10KB limit is crossed and the file rolls over
    public int generateLogs(int count) {
        log.info("Generating {} sample log lines", count);
        for (int i = 1; i <= count; i++) {
            log.info("Sample log line {} - Student processing batch in progress", i);
        }
        return count;
    }

    // Writes an ERROR with a stack trace so it appears in student-error.log
    public void simulateError() {
        try {
            Object value = null;
            value.toString();   // deliberate NullPointerException
        } catch (Exception ex) {
            log.error("Simulated failure while processing student batch", ex);
        }
    }

    // Changes the level of one logger at runtime (no restart needed)
    public void changeLevel(String loggerName, String level) {
        LogLevel logLevel = LogLevel.valueOf(level.toUpperCase());
        loggingSystem.setLogLevel(loggerName, logLevel);
        log.warn("Log level of {} changed to {} at runtime", loggerName, logLevel);
    }

    // Reads the last N lines of student-app.log ("app") or student-error.log ("error")
    public List<String> tailLog(String type, int lines) throws IOException {
        String fileName = "error".equalsIgnoreCase(type) ? "student-error.log" : "student-app.log";
        Path path = Paths.get(logDir, fileName);
        if (!Files.exists(path)) {
            throw new IllegalArgumentException("Log file not found: " + path.toAbsolutePath());
        }
        List<String> all = Files.readAllLines(path, StandardCharsets.UTF_8);
        int from = Math.max(0, all.size() - lines);
        return new ArrayList<>(all.subList(from, all.size()));
    }

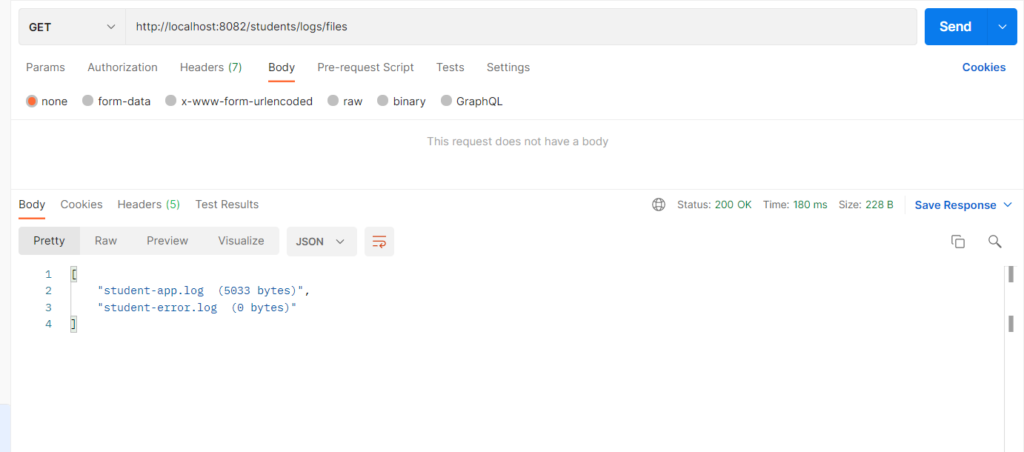

    // Lists current files and rolled-over archive files with their sizes
    public List<String> listLogFiles() throws IOException {
        List<String> result = new ArrayList<>();
        Path dir = Paths.get(logDir);
        if (Files.exists(dir)) {
            try (Stream<Path> files = Files.list(dir)) {
                for (Path p : (Iterable<Path>) files.filter(Files::isRegularFile).sorted()::iterator) {
                    result.add(p.getFileName() + "  (" + Files.size(p) + " bytes)");
                }
            }
        }
        Path archive = dir.resolve("archive");
        if (Files.exists(archive)) {
            try (Stream<Path> files = Files.list(archive)) {
                for (Path p : (Iterable<Path>) files.sorted()::iterator) {
                    result.add("archive/" + p.getFileName() + "  (" + Files.size(p) + " bytes)");
                }
            }
        }
        return result;
    }
}

Step 8: Create Controller class

package com.example.logconfig.controller;

import com.example.logconfig.entity.Student;
import com.example.logconfig.service.StudentService;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.*;

import java.util.List;
import java.util.Map;

@RestController
@RequestMapping("/students")
public class StudentController {

    private static final Logger log = LoggerFactory.getLogger(StudentController.class);

    private final StudentService studentService;

    public StudentController(StudentService studentService) {
        this.studentService = studentService;
    }

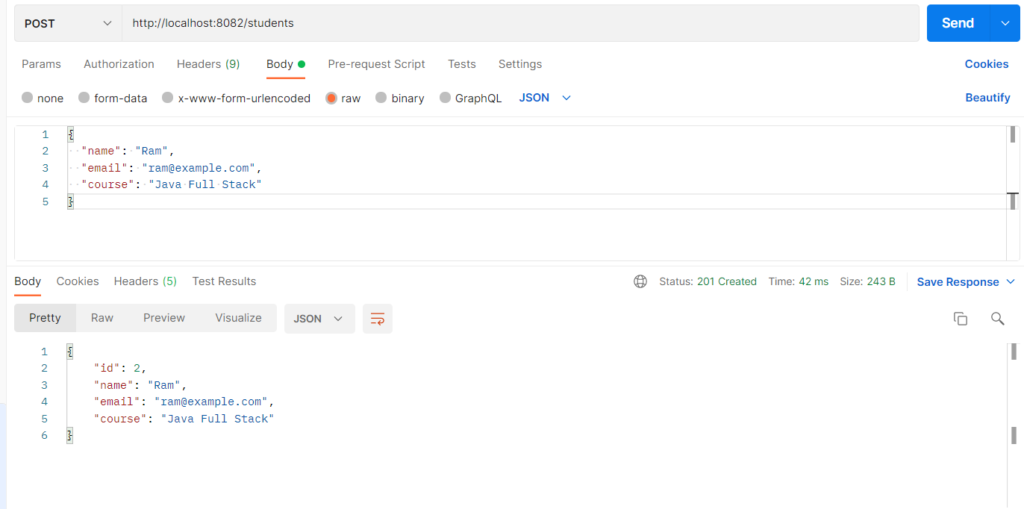

    @PostMapping
    public ResponseEntity<?> create(@RequestBody Student student) {
        log.info("POST /students called");
        try {
            return ResponseEntity.status(HttpStatus.CREATED).body(studentService.create(student));
        } catch (IllegalArgumentException ex) {
            return ResponseEntity.badRequest().body(Map.of("error", ex.getMessage()));
        }
    }

    @GetMapping
    public List<Student> getAll() {
        log.info("GET /students called");
        return studentService.getAll();
    }

    @GetMapping("/{id}")
    public ResponseEntity<?> getById(@PathVariable Long id) {
        log.info("GET /students/{} called", id);
        try {
            return ResponseEntity.ok(studentService.getById(id));
        } catch (IllegalArgumentException ex) {
            return ResponseEntity.status(HttpStatus.NOT_FOUND).body(Map.of("error", ex.getMessage()));
        }
    }

    // ---------- Log configuration helpers (for the experiment - learning only) ----------

    @PostMapping("/logs/generate")
    public Map<String, Object> generate(@RequestBody Map<String, Integer> request) {
        int count = request.getOrDefault("count", 100);
        log.info("POST /students/logs/generate called with count={}", count);
        return Map.of("generated", studentService.generateLogs(count));
    }

    @PostMapping("/logs/simulate-error")
    public Map<String, String> simulateError() {
        log.info("POST /students/logs/simulate-error called");
        studentService.simulateError();
        return Map.of("message", "ERROR written - check logs/student-error.log");
    }

    @PostMapping("/logs/level")
    public ResponseEntity<?> changeLevel(@RequestBody Map<String, String> request) {
        String loggerName = request.get("logger");
        String level = request.get("level");
        if (loggerName == null || level == null) {
            return ResponseEntity.badRequest().body(Map.of("error", "'logger' and 'level' are required"));
        }
        try {
            studentService.changeLevel(loggerName, level);
            return ResponseEntity.ok(Map.of("logger", loggerName, "level", level.toUpperCase()));
        } catch (IllegalArgumentException ex) {
            return ResponseEntity.badRequest()
                    .body(Map.of("error", "Invalid level. Use TRACE, DEBUG, INFO, WARN, ERROR, OFF"));
        }
    }

    @GetMapping("/logs/files")
    public ResponseEntity<?> files() {
        try {
            return ResponseEntity.ok(studentService.listLogFiles());
        } catch (Exception ex) {
            log.error("Could not list log files", ex);
            return ResponseEntity.status(HttpStatus.INTERNAL_SERVER_ERROR).body(Map.of("error", "Could not list log files"));
        }
    }

    @GetMapping("/logs/tail")
    public ResponseEntity<?> tail(@RequestParam(defaultValue = "app") String type,
                                  @RequestParam(defaultValue = "20") int lines) {
        try {
            return ResponseEntity.ok(studentService.tailLog(type, lines));
        } catch (IllegalArgumentException ex) {
            return ResponseEntity.status(HttpStatus.NOT_FOUND).body(Map.of("error", ex.getMessage()));
        } catch (Exception ex) {
            log.error("Could not read log file", ex);
            return ResponseEntity.status(HttpStatus.INTERNAL_SERVER_ERROR).body(Map.of("error", "Could not read log file"));
        }
    }
}

Step 9: Main Application

package com.example.logconfig;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class LogConfigApplication {

    public static void main(String[] args) {
        SpringApplication.run(LogConfigApplication.class, args);
    }
}

Step 10: Run the LogConfigApplication

PREVIOUS
NEXT

Related Posts

Scroll to Top
