Many-to-Many Mapping -

Many-to-Many mapping links records so that one record on either side can be associated with many records on the other side (one student takes many courses, one course has many students). It is used because a relational database cannot store this directly in two tables, so JPA creates a third table, called a join table, to hold the pairs of IDs. JPA manages the join table for you using @ManyToMany and @JoinTable, so you work with collections of objects instead of writing join SQL. In this experiment, a Student–Course enrollment application enrolls and un-enrolls students and reads the relationship from both directions.

Features

The join table (student_course) is generated automatically with student_id and course_id columns.
One side is the owning side, which controls the join table, and the other is the inverse side, which uses mappedBy.
Set is used for the collections, which avoids duplicate enrollments and performs better than List in Hibernate.
Helper methods (addCourse, removeCourse) keep both sides of the relationship in sync.
Derived queries can navigate the relationship, for example findByCoursesId.

Many-to-Many Mapping Types

1. Unidirectional Many-to-Many. Only one entity knows about the other. For example, Student has Set<Course> courses, but Course has no student list. It is simple, but you can’t navigate from a course to its students without a query.

2. Bidirectional Many-to-Many (used in this example). Both entities hold a collection of each other. Student is the owning side, with @JoinTable. Course is the inverse side, with mappedBy = "courses". You can navigate in both directions, but you must keep both sides in sync using helper methods.

3. Many-to-Many with extra columns (join entity). When the relationship itself needs data, such as enrollment date or grade, the plain @ManyToMany is replaced by a third entity, Enrollment. It has one @ManyToOne to Student and one to Course, plus the extra fields. Use it when the join table needs more than two ID columns.

Hands-on Experiment: Creating a spring boot application with Many-to-Many Mapping

The following steps are involved in developing this hands-on experiment.

Step 1: Generate the Project

Step 2: Project Structure

Step 3: pom.xml

Step 4: application.properties

Step 5: Create Entity Class

Step 6: Create Repository Interface

Step 7: Create Service Class

Step 8: Create Controller Class

Step 9: Main Application Class

Step 10: Run the Main Application Class

Step 1: Configure the Project on Spring Initializr

Go to start.spring.io and set:

Project: Maven
Language: Java
Spring Boot version: 3.2.x
Group: com.example
Artifact: enrollment
Name: enrollment
Package name: com.example.enrollment
Packaging: Jar
Java: 17
Dependencies: Spring Web, Spring Data JPA, PostgreSQL Driver

Click Generate to download the ZIP, then extract and import it into your IDE as a Maven project.

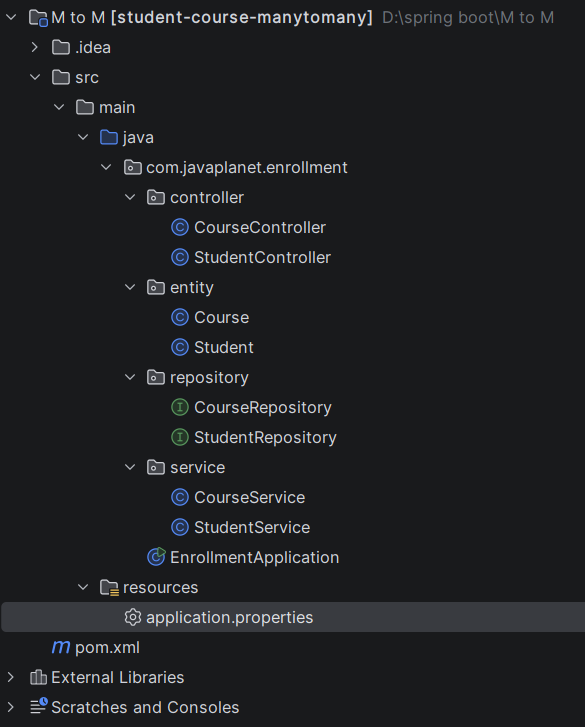

Step 2: Generated Project Structure

Step 3: Explore pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.3.5</version>
        <relativePath/>
    </parent>

    <groupId>com.javaplanet</groupId>
    <artifactId>student-course-manytomany</artifactId>
    <version>1.0.0</version>
    <name>student-course-manytomany</name>
    <description>Many-to-Many Mapping - Student Course Enrollment</description>

    <properties>
        <java.version>17</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <dependency>
            <groupId>com.mysql</groupId>
            <artifactId>mysql-connector-j</artifactId>
            <scope>runtime</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

Step 4: application.properties

spring.application.name=student-course-manytomany
server.port=8082

spring.datasource.url=jdbc:mysql://localhost:3306/enrollment_db?createDatabaseIfNotExist=true&useSSL=false&serverTimezone=UTC&allowPublicKeyRetrieval=true
spring.datasource.username=root
spring.datasource.password=password

spring.jpa.hibernate.ddl-auto=update
spring.jpa.show-sql=true
spring.jpa.open-in-view=true
spring.jpa.properties.hibernate.dialect=org.hibernate.dialect.MySQLDialectCode language: JavaScript (javascript)

Step 5: Create Entity Class

package com.javaplanet.enrollment.entity;

import com.fasterxml.jackson.annotation.JsonIgnoreProperties;
import jakarta.persistence.*;

import java.util.HashSet;
import java.util.Set;

@Entity
@Table(name = "courses")
public class Course {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    @Column(nullable = false)
    private String title;

    private int credits;

    // INVERSE side: mappedBy points to the field on the owning side
    @ManyToMany(mappedBy = "courses")
    @JsonIgnoreProperties("courses")
    private Set<Student> students = new HashSet<>();

    public Course() {
    }

    public Course(String title, int credits) {
        this.title = title;
        this.credits = credits;
    }

    public Long getId() { return id; }
    public void setId(Long id) { this.id = id; }

    public String getTitle() { return title; }
    public void setTitle(String title) { this.title = title; }

    public int getCredits() { return credits; }
    public void setCredits(int credits) { this.credits = credits; }

    public Set<Student> getStudents() { return students; }
    public void setStudents(Set<Student> students) { this.students = students; }
}

package com.javaplanet.enrollment.entity;

import com.fasterxml.jackson.annotation.JsonIgnoreProperties;
import jakarta.persistence.*;

import java.util.HashSet;
import java.util.Set;

@Entity
@Table(name = "students")
public class Student {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    @Column(nullable = false)
    private String name;

    @Column(nullable = false, unique = true)
    private String email;

    // OWNING side: this side defines the join table
    @ManyToMany
    @JoinTable(
            name = "student_course",
            joinColumns = @JoinColumn(name = "student_id"),
            inverseJoinColumns = @JoinColumn(name = "course_id")
    )
    @JsonIgnoreProperties("students")
    private Set<Course> courses = new HashSet<>();

    public Student() {
    }

    public Student(String name, String email) {
        this.name = name;
        this.email = email;
    }

    // helper methods keep both sides of the relationship in sync
    public void addCourse(Course course) {
        this.courses.add(course);
        course.getStudents().add(this);
    }

    public void removeCourse(Course course) {
        this.courses.remove(course);
        course.getStudents().remove(this);
    }

    public Long getId() { return id; }
    public void setId(Long id) { this.id = id; }

    public String getName() { return name; }
    public void setName(String name) { this.name = name; }

    public String getEmail() { return email; }
    public void setEmail(String email) { this.email = email; }

    public Set<Course> getCourses() { return courses; }
    public void setCourses(Set<Course> courses) { this.courses = courses; }
}

Step 6: Create below Repository Interface

package com.javaplanet.enrollment.repository;

import com.javaplanet.enrollment.entity.Course;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

import java.util.List;

@Repository
public interface CourseRepository extends JpaRepository<Course, Long> {

    // all courses taken by a given student (navigates Course.students.id)
    List<Course> findByStudentsId(Long studentId);
}

package com.javaplanet.enrollment.repository;

import com.javaplanet.enrollment.entity.Student;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

import java.util.List;

@Repository
public interface StudentRepository extends JpaRepository<Student, Long> {

    // all students enrolled in a given course (navigates Student.courses.id)
    List<Student> findByCoursesId(Long courseId);
}

Step 7: Create below Service class

package com.javaplanet.enrollment.service;

import com.javaplanet.enrollment.entity.Course;
import com.javaplanet.enrollment.entity.Student;
import com.javaplanet.enrollment.repository.CourseRepository;
import com.javaplanet.enrollment.repository.StudentRepository;
import org.springframework.http.HttpStatus;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;
import org.springframework.web.server.ResponseStatusException;

import java.util.List;

@Service
public class CourseService {

    private final CourseRepository courseRepository;
    private final StudentRepository studentRepository;

    public CourseService(CourseRepository courseRepository, StudentRepository studentRepository) {
        this.courseRepository = courseRepository;
        this.studentRepository = studentRepository;
    }

    public Course createCourse(Course course) {
        return courseRepository.save(course);
    }

    @Transactional(readOnly = true)
    public List<Course> getAllCourses() {
        return courseRepository.findAll();
    }

    @Transactional(readOnly = true)
    public Course getCourse(Long id) {
        return courseRepository.findById(id)
                .orElseThrow(() -> new ResponseStatusException(HttpStatus.NOT_FOUND, "Course not found: " + id));
    }

    @Transactional(readOnly = true)
    public List<Student> getStudentsOfCourse(Long courseId) {
        getCourse(courseId);
        return studentRepository.findByCoursesId(courseId);
    }
}

package com.javaplanet.enrollment.service;

import com.javaplanet.enrollment.entity.Course;
import com.javaplanet.enrollment.entity.Student;
import com.javaplanet.enrollment.repository.CourseRepository;
import com.javaplanet.enrollment.repository.StudentRepository;
import org.springframework.http.HttpStatus;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;
import org.springframework.web.server.ResponseStatusException;

import java.util.List;

@Service
public class StudentService {

    private final StudentRepository studentRepository;
    private final CourseRepository courseRepository;

    public StudentService(StudentRepository studentRepository, CourseRepository courseRepository) {
        this.studentRepository = studentRepository;
        this.courseRepository = courseRepository;
    }

    public Student createStudent(Student student) {
        return studentRepository.save(student);
    }

    @Transactional(readOnly = true)
    public List<Student> getAllStudents() {
        return studentRepository.findAll();
    }

    @Transactional(readOnly = true)
    public Student getStudent(Long id) {
        return studentRepository.findById(id)
                .orElseThrow(() -> new ResponseStatusException(HttpStatus.NOT_FOUND, "Student not found: " + id));
    }

    @Transactional
    public Student enroll(Long studentId, Long courseId) {
        Student student = getStudent(studentId);
        Course course = courseRepository.findById(courseId)
                .orElseThrow(() -> new ResponseStatusException(HttpStatus.NOT_FOUND, "Course not found: " + courseId));
        student.addCourse(course);
        return studentRepository.save(student);
    }

    @Transactional
    public Student unenroll(Long studentId, Long courseId) {
        Student student = getStudent(studentId);
        Course course = courseRepository.findById(courseId)
                .orElseThrow(() -> new ResponseStatusException(HttpStatus.NOT_FOUND, "Course not found: " + courseId));
        student.removeCourse(course);
        return studentRepository.save(student);
    }

    @Transactional(readOnly = true)
    public List<Course> getCoursesOfStudent(Long studentId) {
        getStudent(studentId);
        return courseRepository.findByStudentsId(studentId);
    }
}

Step 8: Create Controller class

package com.javaplanet.enrollment.controller;

import com.javaplanet.enrollment.entity.Course;
import com.javaplanet.enrollment.entity.Student;
import com.javaplanet.enrollment.service.CourseService;
import org.springframework.http.HttpStatus;
import org.springframework.web.bind.annotation.*;

import java.util.List;

@RestController
@RequestMapping("/api/courses")
public class CourseController {

    private final CourseService courseService;

    public CourseController(CourseService courseService) {
        this.courseService = courseService;
    }

    @PostMapping
    @ResponseStatus(HttpStatus.CREATED)
    public Course create(@RequestBody Course course) {
        return courseService.createCourse(course);
    }

    @GetMapping
    public List<Course> getAll() {
        return courseService.getAllCourses();
    }

    @GetMapping("/{id}")
    public Course getOne(@PathVariable Long id) {
        return courseService.getCourse(id);
    }

    @GetMapping("/{courseId}/students")
    public List<Student> getStudents(@PathVariable Long courseId) {
        return courseService.getStudentsOfCourse(courseId);
    }
}

package com.javaplanet.enrollment.controller;

import com.javaplanet.enrollment.entity.Course;
import com.javaplanet.enrollment.entity.Student;
import com.javaplanet.enrollment.service.StudentService;
import org.springframework.http.HttpStatus;
import org.springframework.web.bind.annotation.*;

import java.util.List;

@RestController
@RequestMapping("/api/students")
public class StudentController {

    private final StudentService studentService;

    public StudentController(StudentService studentService) {
        this.studentService = studentService;
    }

    @PostMapping
    @ResponseStatus(HttpStatus.CREATED)
    public Student create(@RequestBody Student student) {
        return studentService.createStudent(student);
    }

    @GetMapping
    public List<Student> getAll() {
        return studentService.getAllStudents();
    }

    @GetMapping("/{id}")
    public Student getOne(@PathVariable Long id) {
        return studentService.getStudent(id);
    }

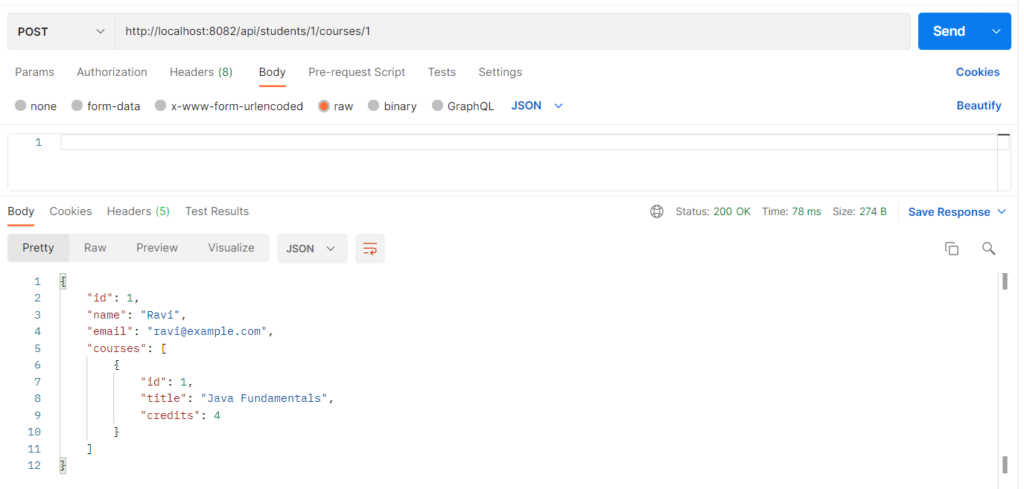

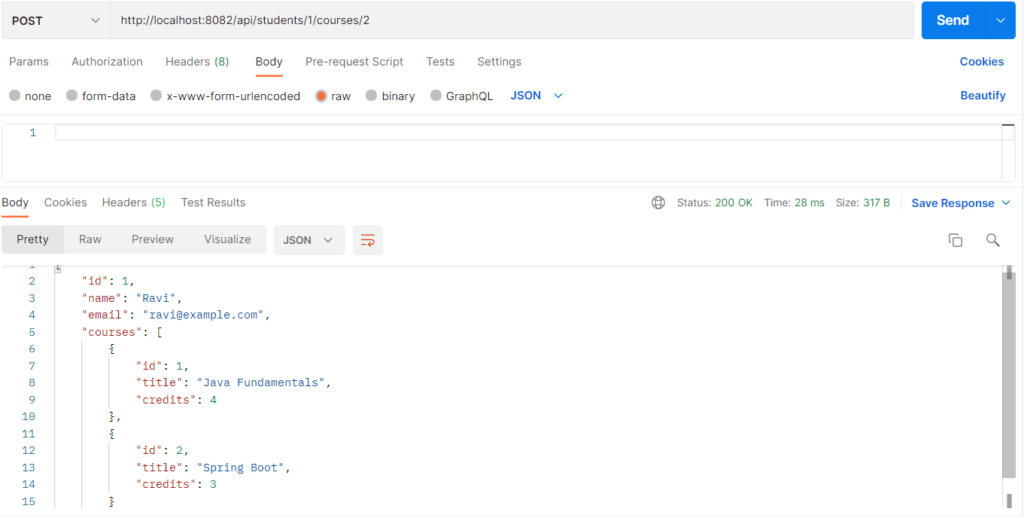

    @PostMapping("/{studentId}/courses/{courseId}")
    public Student enroll(@PathVariable Long studentId, @PathVariable Long courseId) {
        return studentService.enroll(studentId, courseId);
    }

    @DeleteMapping("/{studentId}/courses/{courseId}")
    public Student unenroll(@PathVariable Long studentId, @PathVariable Long courseId) {
        return studentService.unenroll(studentId, courseId);
    }

    @GetMapping("/{studentId}/courses")
    public List<Course> getCourses(@PathVariable Long studentId) {
        return studentService.getCoursesOfStudent(studentId);
    }
}

Step 9: Main Application

package com.javaplanet.enrollment;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class EnrollmentApplication {

    public static void main(String[] args) {
        SpringApplication.run(EnrollmentApplication.class, args);
    }
}
