Spring Boot Actuator -

Actuator is a Spring Boot module that exposes operational information about a running application through ready-made HTTP endpoints.
It is used to monitor and troubleshoot an application: is it up, is the database connected, how much memory is used, which URLs and beans exist.
You add one dependency (spring-boot-starter-actuator) and the endpoints appear under /actuator, with no code to write.
Monitoring tools, load balancers and Kubernetes use the same endpoints to check whether the application is healthy.

Features

Reports application and database health (UP or DOWN).
Shows application information such as name, description and version.
Exposes metrics: JVM memory, CPU, threads, and HTTP request counts and timing.
Lists all URL mappings, Spring beans and configuration properties.
Shows and changes logger levels while the application is running.
Lets you choose which endpoints are exposed over HTTP.

Actuator Endpoints

Endpoint	What it shows

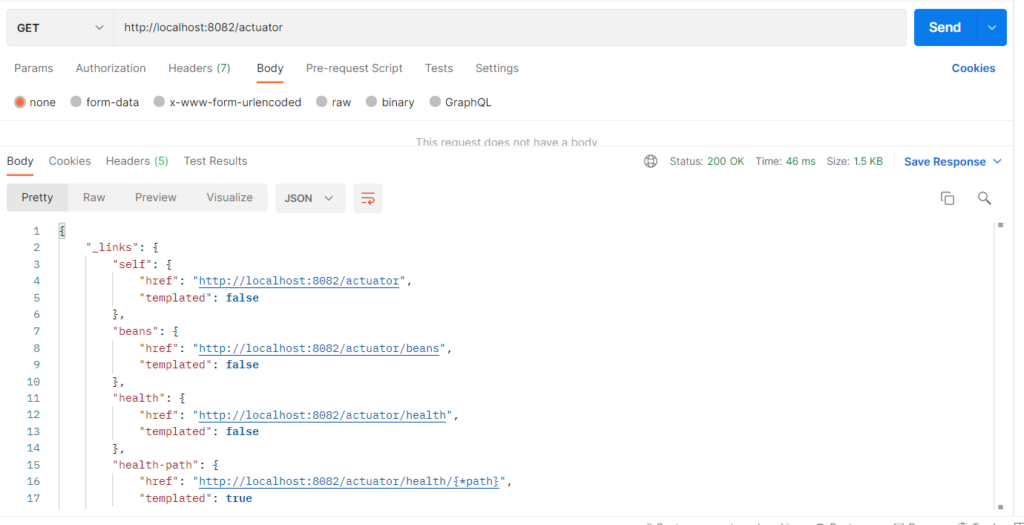

`/actuator`	List of all exposed endpoints with links.
`/actuator/health`	Application status, including the MySQL database and disk space.
`/actuator/info`	Application details from the `info.*` properties.
`/actuator/metrics`	List of all metric names.
`/actuator/metrics/{name}`	Value of one metric, such as `jvm.memory.used` or `http.server.requests`.
`/actuator/env`	Environment and configuration properties.
`/actuator/beans`	Every Spring bean in the application context.
`/actuator/mappings`	Every URL mapping, with the controller method that handles it.
`/actuator/loggers`	Logger names and their current levels.
`/actuator/configprops`	Values bound to `@ConfigurationProperties` classes.
`/actuator/conditions`	Which auto-configurations were applied and why.
`/actuator/threaddump`	The state of all running threads.

Exposure settings in application.properties

management.endpoints.web.exposure.include chooses which endpoints are available over HTTP. By default only health is exposed.
management.endpoint.health.show-details=always shows the database and disk details, not just UP.
management.info.env.enabled=true makes /actuator/info display the info.* properties.
management.endpoint.env.show-values=ALWAYS shows real values in /actuator/env. This is for learning only, because it also reveals the database password.

Hands-on Experiment: Creating a spring boot application to understand how Actuator exposes operational information about a running Spring Boot application.

The following steps are involved in developing this hands-on experiment.

Step 1: Generate the Project

Step 2: Project Structure

Step 3: pom.xml

Step 4: application.properties

Step 5: Create Entity Class

Step 6: Create Repository Interface

Step 7: Create Service Class

Step 8: Create Controller Class

Step 9: Main Application Class

Step 10: Run the Main Application Class

Step 1: Configure the Project on Spring Initializr

Go to start.spring.io and set:

Project: Maven
Language: Java
Spring Boot version: 3.2.x
Group: com.example
Artifact: actuatordemo
Name: actuatordemo
Package name: com.example.actuatordemo
Packaging: Jar
Java: 17
Dependencies: Spring Web, Spring Data JPA, MySQL Driver, Actuator.

Click Generate to download the ZIP, then extract and import it into your IDE as a Maven project.

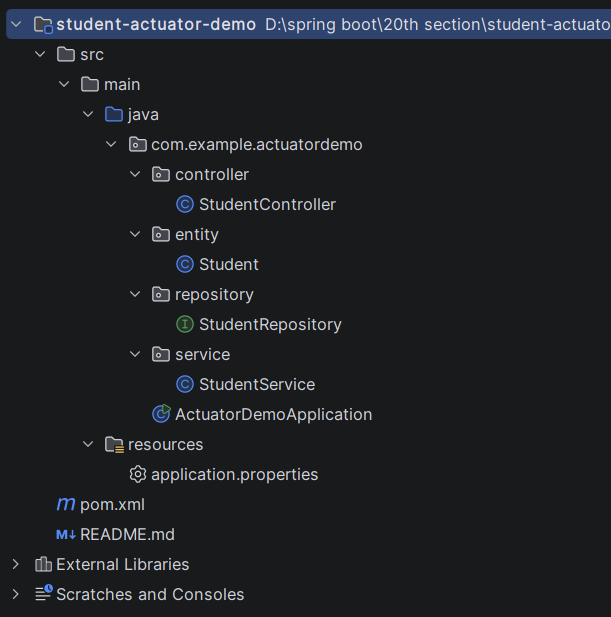

Step 2: Generated Project Structure

Step 3: Explore pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.2.5</version>
        <relativePath/>
    </parent>

    <groupId>com.example</groupId>
    <artifactId>student-actuator-demo</artifactId>
    <version>1.0.0</version>
    <name>student-actuator-demo</name>
    <description>Spring Boot Actuator added to the Student application</description>

    <properties>
        <java.version>17</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <!-- Adds the /actuator endpoints -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>com.mysql</groupId>
            <artifactId>mysql-connector-j</artifactId>
            <scope>runtime</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

Step 4: application.properties

spring.application.name=student-actuator-demo
server.port=8082

# MySQL (database is created automatically if it does not exist) - change username/password as needed
spring.datasource.url=jdbc:mysql://localhost:3306/studentdb?createDatabaseIfNotExist=true&useSSL=false&serverTimezone=UTC&allowPublicKeyRetrieval=true
spring.datasource.username=root
spring.datasource.password=password

spring.jpa.hibernate.ddl-auto=update
spring.jpa.show-sql=true

# ---------- Actuator settings ----------
# By default only "health" is exposed over HTTP. Expose the endpoints we want to explore.
management.endpoints.web.exposure.include=health,info,metrics,env,beans,mappings,loggers,configprops,conditions,threaddump

# Show full health details (database, disk space) instead of just UP/DOWN
management.endpoint.health.show-details=always

# Show real values in /actuator/env (LEARNING ONLY - this also reveals the database password!)
management.endpoint.env.show-values=ALWAYS

# Make the "info" endpoint show the info.* properties below
management.info.env.enabled=true
info.app.name=Student Application
info.app.description=Student CRUD application with Spring Boot Actuator
info.app.version=1.0.0
info.developer.name=devCode language: PHP (php)

Step 5: Create Entity Class

package com.example.actuatordemo.entity;

import jakarta.persistence.Column;
import jakarta.persistence.Entity;
import jakarta.persistence.GeneratedValue;
import jakarta.persistence.GenerationType;
import jakarta.persistence.Id;
import jakarta.persistence.Table;

@Entity
@Table(name = "students")
public class Student {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    private String name;

    @Column(unique = true)
    private String email;

    private String department;

    public Student() {
    }

    public Student(String name, String email, String department) {
        this.name = name;
        this.email = email;
        this.department = department;
    }

    public Long getId() { return id; }
    public void setId(Long id) { this.id = id; }

    public String getName() { return name; }
    public void setName(String name) { this.name = name; }

    public String getEmail() { return email; }
    public void setEmail(String email) { this.email = email; }

    public String getDepartment() { return department; }
    public void setDepartment(String department) { this.department = department; }
}

Step 6: Create below Repository Interface

package com.example.actuatordemo.repository;

import com.example.actuatordemo.entity.Student;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

@Repository
public interface StudentRepository extends JpaRepository<Student, Long> {

    boolean existsByEmail(String email);
}

Step 7: Create below Service class

package com.example.actuatordemo.service;

import com.example.actuatordemo.entity.Student;
import com.example.actuatordemo.repository.StudentRepository;
import org.springframework.http.HttpStatus;
import org.springframework.stereotype.Service;
import org.springframework.web.server.ResponseStatusException;

import java.util.List;

@Service
public class StudentService {

    private final StudentRepository studentRepository;

    public StudentService(StudentRepository studentRepository) {
        this.studentRepository = studentRepository;
    }

    public Student addStudent(Student student) {
        if (studentRepository.existsByEmail(student.getEmail())) {
            throw new ResponseStatusException(HttpStatus.CONFLICT,
                    "Email already registered: " + student.getEmail());
        }
        return studentRepository.save(student);
    }

    public List<Student> getAllStudents() {
        return studentRepository.findAll();
    }

    public Student getStudentById(Long id) {
        return studentRepository.findById(id)
                .orElseThrow(() -> new ResponseStatusException(HttpStatus.NOT_FOUND,
                        "Student not found with id: " + id));
    }

    public Student updateStudent(Long id, Student updated) {
        Student existing = getStudentById(id);
        existing.setName(updated.getName());
        existing.setDepartment(updated.getDepartment());
        return studentRepository.save(existing);
    }

    public void deleteStudent(Long id) {
        if (!studentRepository.existsById(id)) {
            throw new ResponseStatusException(HttpStatus.NOT_FOUND,
                    "Student not found with id: " + id);
        }
        studentRepository.deleteById(id);
    }
}

Step 8: Create Controller class

package com.example.actuatordemo.controller;

import com.example.actuatordemo.entity.Student;
import com.example.actuatordemo.service.StudentService;
import org.springframework.http.HttpStatus;
import org.springframework.web.bind.annotation.*;

import java.util.List;

@RestController
@RequestMapping("/students")
public class StudentController {

    private final StudentService studentService;

    public StudentController(StudentService studentService) {
        this.studentService = studentService;
    }

    @PostMapping
    @ResponseStatus(HttpStatus.CREATED)
    public Student addStudent(@RequestBody Student student) {
        return studentService.addStudent(student);
    }

    @GetMapping
    public List<Student> getAllStudents() {
        return studentService.getAllStudents();
    }

    @GetMapping("/{id}")
    public Student getStudentById(@PathVariable Long id) {
        return studentService.getStudentById(id);
    }

    @PutMapping("/{id}")
    public Student updateStudent(@PathVariable Long id, @RequestBody Student student) {
        return studentService.updateStudent(id, student);
    }

    @DeleteMapping("/{id}")
    public String deleteStudent(@PathVariable Long id) {
        studentService.deleteStudent(id);
        return "Student deleted with id: " + id;
    }
}

Step 9: Main Application

package com.example.actuatordemo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class ActuatorDemoApplication {

    public static void main(String[] args) {
        SpringApplication.run(ActuatorDemoApplication.class, args);
    }
}
